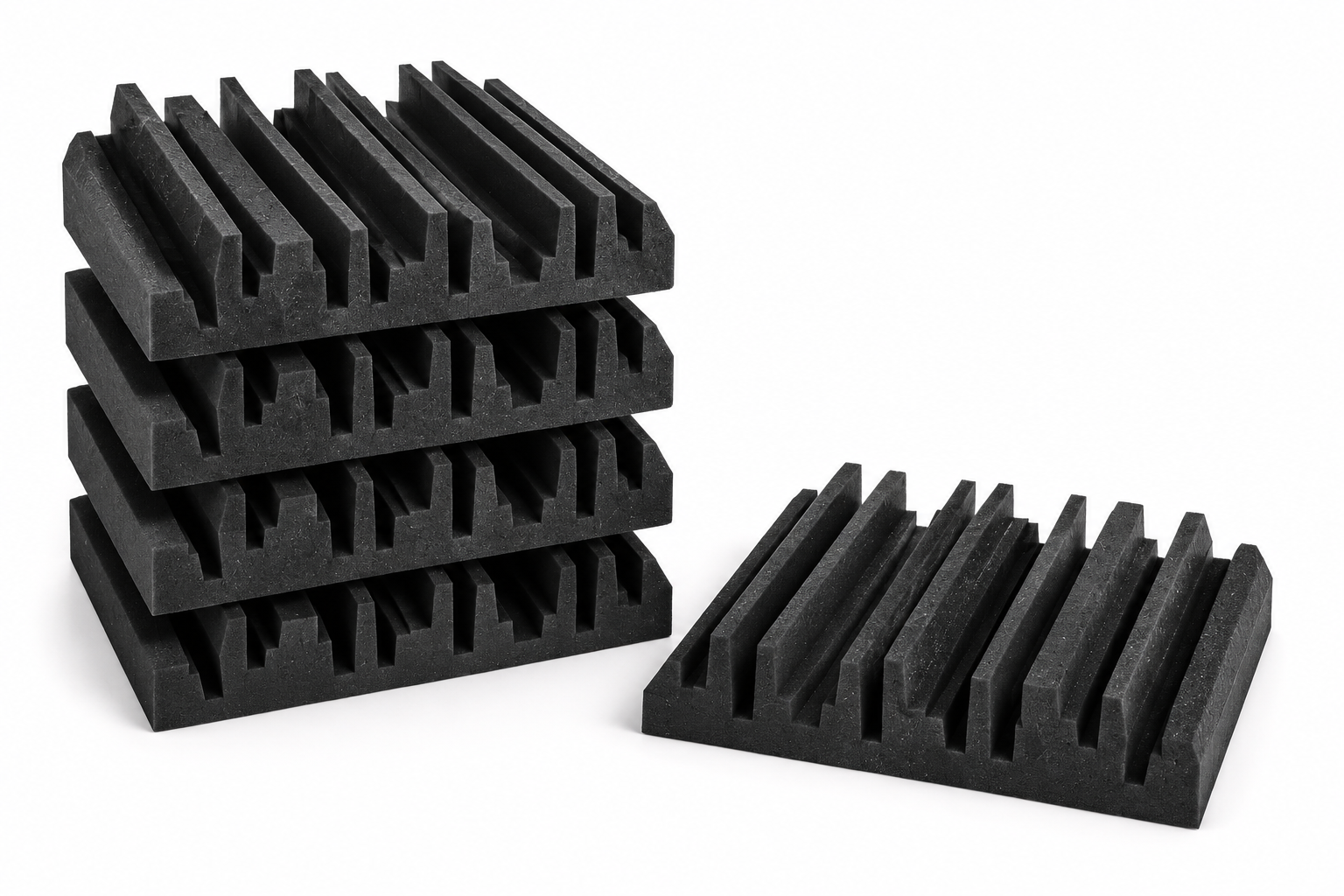

DAC PF Linear is a high-density polyurethane acoustic foam panel designed to provide a combination of sound absorption and diffusion within acoustically sensitive interiors.
Its profiled surface redistributes reflected sound while the open-cell foam structure absorbs unwanted acoustic energy, helping reduce reverberation, flutter echo, hot spots and dead spots without making the room excessively acoustically dry.
The lightweight modular panel is suitable for recording studios, control rooms, live rooms and other spaces requiring a balance between sound absorption and diffusion.
•Panel Size: 300 × 300 mm
•Overall Thickness: 65 mm
•Density: 50 kg/m³
•Material: Open-cell polyurethane acoustic foam
•Profile: Quadratic residue absorber-diffuser profile
•Colour: Black / Charcoal
•NRC: 0.80
•Fire Standard: CA117
•Reference Packaging: Set of 24 panels
•High-density acoustic polyurethane foam
•Combined absorption + diffusion function
•Based on a quadratic residue acoustic profile
•50 kg/m³ density
•NRC 0.80
•65 mm overall depth
•Helps redistribute reflected sound energy
•Helps reduce flutter echo
•Helps minimize acoustic hot spots and dead spots
•Maintains greater room liveliness than excessive absorption alone
•CNC-cut profile for consistent geometry
•Lightweight construction
•Suitable for walls and ceilings
•Modular 300 × 300 mm format
•Fire standard: CA117
•5-year manufacturer warranty on the referenced product
•Recording studios
•Control rooms
•Live rooms
•Voice-over rooms
•Broadcast studios
•Music rehearsal rooms
•Home theatres
•Listening rooms
•Podcast studios
•Live performance spaces
•Mixing rooms
•Other mid- and high-frequency acoustic treatment applications
•Direct Wall Installation
•Ceiling Installation
•Rear-Wall Treatment
•Reflection-Point Treatment
•Modular Array Installation
•Mixed Acoustic Treatment
