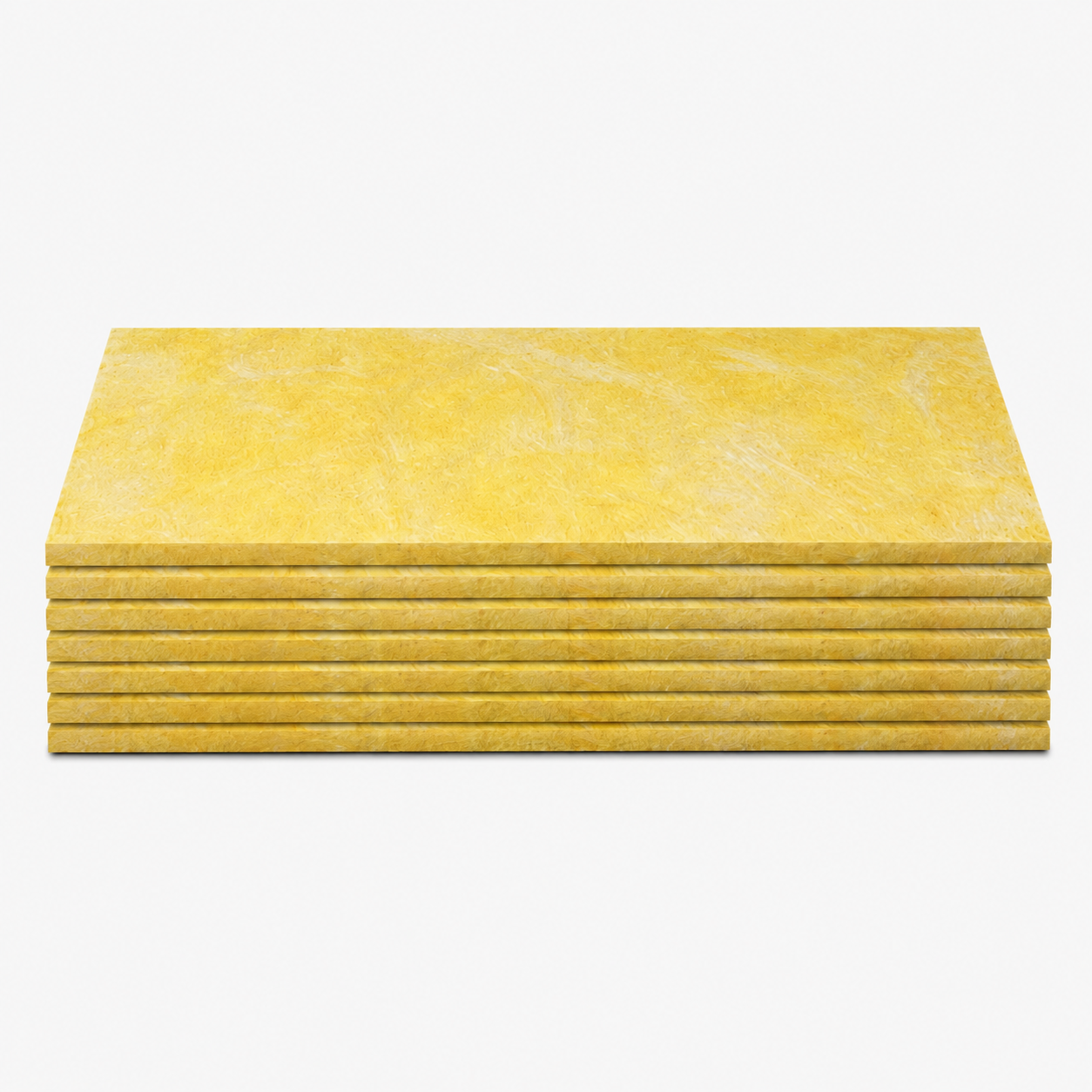

DAC Owens Corning FG is a semi-rigid fiberglass acoustic insulation board designed for high sound absorption in wall panels, ceiling panels, broadband absorbers and bass traps.
Manufactured from inorganic glass fibres bonded into a rigid board, its open fibrous structure provides effective absorption across the mid and high frequencies while deeper configurations extend performance into lower frequencies.
The board is lightweight, dimensionally stable and easy to cut, making it suitable as an acoustic core for professional studios, auditoriums, home theatres and architectural acoustic systems.
•Panel Size: 1200 × 600 mm
•Thickness: 50 mm
•Density: 48 kg/m³
•Material: Inorganic fiberglass with thermosetting resin binder
•Finish: Unfaced
•Panels per Box: 8
•Coverage per Box: 64 sq.ft
•NRC: 1.00 for approximately 50 mm unfaced Type 703
•Semi-rigid fiberglass acoustic board
•Density: 48 kg/m³
•NRC 1.00 at approximately 50 mm thickness
•Excellent broadband sound absorption
•Strong mid- and high-frequency absorption
•Increased low-frequency performance when multiple layers are combined
•Lightweight yet sufficiently rigid for panel fabrication
•Easy to cut and shape on site
•Suitable for fabric-wrapped acoustic panels
•Suitable for broadband absorbers and bass traps
•Can be installed on walls and ceilings
•Good dimensional and structural stability
•Operating temperature up to approximately 232°C
•Low water-vapour sorption
•Resistant to fungal growth
•Contains approximately 53% recycled glass content
•Suitable for framed and frameless acoustic panel construction
•Fabric-wrapped acoustic wall panels
•Acoustic ceiling panels
•Recording studios
•Control rooms
•Broadcast studios
•Home theatres
•Auditoriums
•Vocal booths
•Podcast rooms
•Conference rooms
•Classrooms
•Broadband absorbers
•Bass traps
•Acoustic clouds
•HVAC and duct acoustic treatment
•Wall and ceiling acoustic insulation systems
•Fabric-Wrapped Acoustic Panel
•Frameless Acoustic Panel
•Wall Installation
•Ceiling Installation
•Broadband Absorber
